Overview

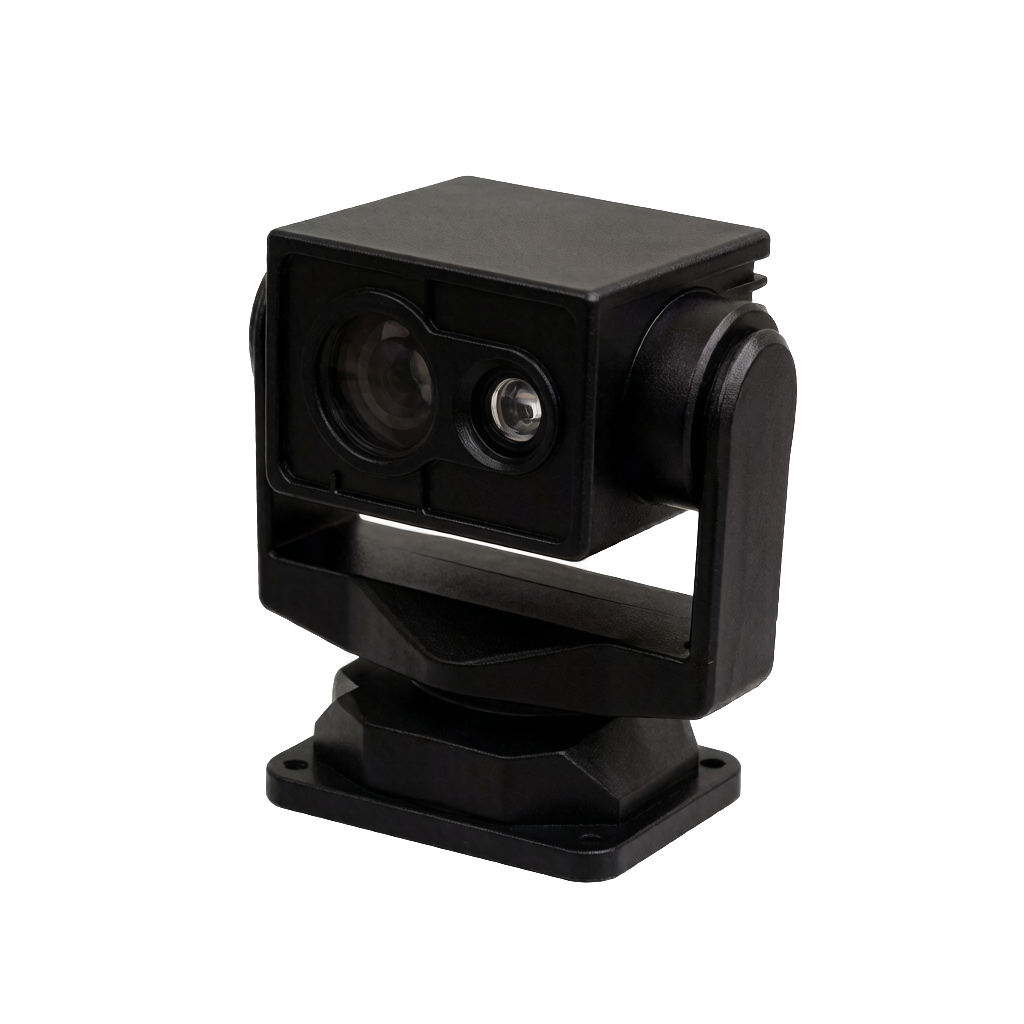

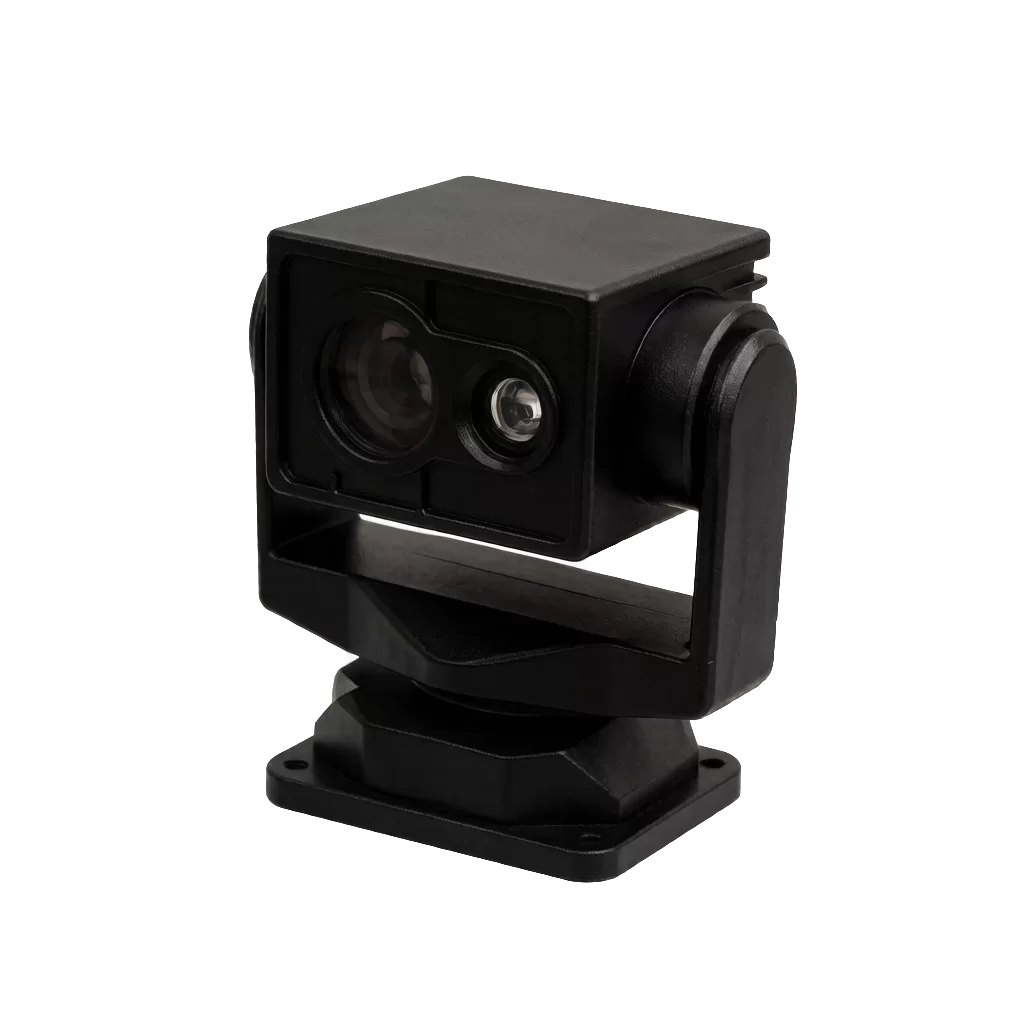

The ZANVISION ZANPOD P03 is an ultra-compact, high-precision dual-sensor PTZ payload engineered specifically for mobile robots (quadrupeds, UGVs), autonomous inspection platforms, and security surveillance. Integrating a high-sensitivity 640*512 thermal imaging camera, a 5MP 30x optical zoom visual sensor, and a 1200m laser rangefinder into a rugged IP54 housing, the ZANPOD P03 provides complete 360° situational awareness and real-time intelligence in extreme environments.
H3: Key Features & Capabilities
1. Dual-Spectral Imaging System
Thermal Camera: Equipped with an uncooled VOx microbolometer (640*512 resolution, 12µm pixel pitch) and a 25mm athermalized lens. Delivers high thermal sensitivity (NETD < 35mK @F1.0) for immediate temperature anomaly detection and zero-light surveillance.
Daylight Camera: Powered by a 5 Megapixel $1/2.8''CMOS sensor with 30x optical zoom (5.1mm–153mm). Supports ultra-low light performance (0.0005 Lux), Electronic Defog, and Image Stabilization (EIS) for crystal-clear long-range visual inspection.
2. Precision Targeting & Laser Rangefinding
Laser Rangefinder (LRF): Integrated laser rangefinder measuring accurate distances from 0.2m to 1,200m, enabling real-time spatial mapping and target location.
3. High-Precision Pan-Tilt Mechanics
Extended Motion Range: Full $360^{\circ}$ continuous pan rotation 0.17° to 100°/sec and -45°to +90° tilt movement 0.17° to 80°/sec.
Targeting Accuracy: Preset position accuracy $\le0.1^{\circ}$ with support for 255 customizable presets, cruise/auto scan, and real-time query angle return.
4. Engineered for Robotic & System Integration
Compact & Ultra-Lightweight: Measures only $170 \times 100 \times 180 \text{ mm}$ and weighs $<2.35\text{ kg}$, minimizing payload burden on mobile platforms.
Low Power Consumption: Operates at a maximum power draw of just 6.5W, preserving critical battery life for autonomous robots.
Seamless Connectivity: Fully ONVIF compliant (Profile S/G) with standard Ethernet (10M/100M), rich SDK support, and flexible local storage (Micro-SD up to 256GB / NAS).
5. Industrial-Grade Reliability & Analytics
Rugged Construction: IP54-rated ingress protection with a wide operating temperature range from -30°C to 60°C.
Embedded Intelligent Analytics: Built-in AI detection features including Tripwire, Intrusion, and Loitering monitoring.
