Product Overview

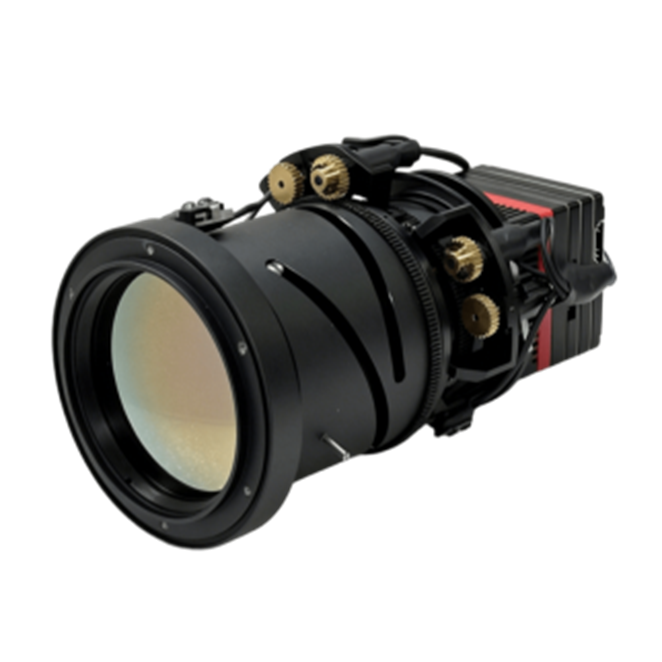

The Zanvision ZV-LZSV07503HC is a high-performance, high-definition uncooled VOx thermal imaging module designed for seamless integration into advanced electro-optical/infrared (EO/IR) systems. Featuring an ultra-clear 1280×1024 12μm pixel pitch, this infrared core delivers exceptional spatial resolution and situational awareness over long distances.
Equipped with a precision-engineered 25~75mm 3x continuous zoom lens and advanced autofocus algorithms, it provides smooth, uninterrupted tracking from a wide field of view 36.2° × 28.6° down to a narrow telephoto view 11.6° × 9.3° . With a thermal sensitivity of ≤ 35 mK , the module detects the subtlest temperature differences even under challenging environmental conditions.
Engineered for Mission-Critical Integration
Designed specifically for system integrators, the ZV-LZSV07503HC is the ideal thermal payload for:
EO/IR PTZ Gimbals: Optimized for coastal defense, border surveillance, and forest fire prevention networks.

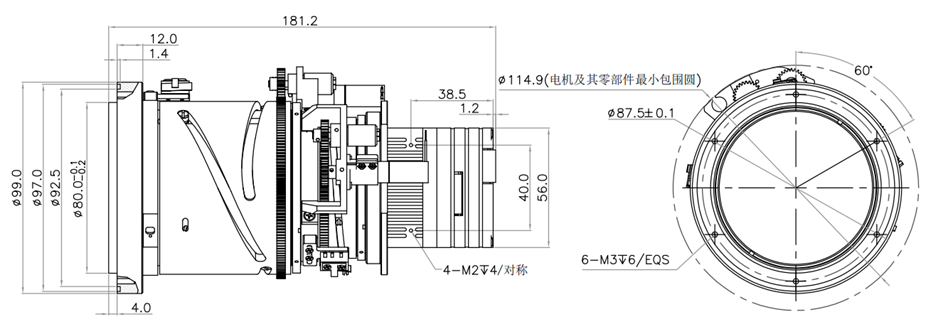

UAV & Robotic Pods: Ultra-reliable, compact form factor Ф80*181.2mm weighing just 1315g, making it perfect for airborne and vehicular payloads.
Network & Intelligent Edge: Features native IP network stream output, ONVIF compliance, and built-in smart analytics (Tripwire, Intrusion, Human/Vehicle/Vessel classification).
