Product Overview

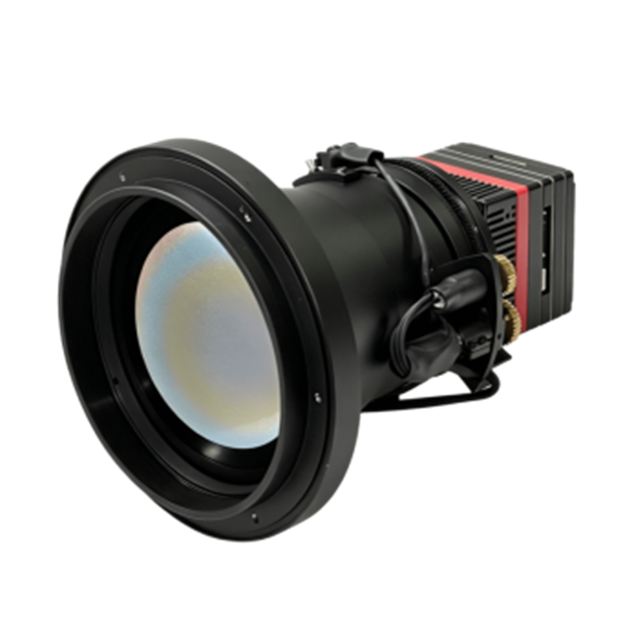

The Zanvision ZV-LESV100HC is a professional-grade, high-definition IP thermal imaging module engineered for elite long-range surveillance and high-tech defense systems. Featuring a premium 1280*1024 uncooled VOx microbolometer with a 12µm pixel pitch, this module delivers exceptional thermal clarity and spatial awareness across expansive environments.
Equipped with a precision-engineered 100mm motorized auto-focus lens and boasting a thermal sensitivity of NETD ≤ 35mK, the ZV-LESV100HC guarantees crisp, contrast-rich thermal imaging even in zero-light conditions, dense fog, or smoke. It outputs network video streams at up to 1920*1080 resolution at 30fps and features a tight 8.8° ~ 7.0° horizontal field of view, making it the perfect sensor for long-range detection.
Designed with systems integrators in mind, it supports multiple protocols including ONVIF, VISCA, and Pelco-D/P. It provides comprehensive interface options such as TTL 3.3V, RS485, USB, Ethernet, and audio/alarm I/O, seamlessly embedding into maritime/border EO/IR PTZ gimbals, airborne UAV payloads, and military-grade threat detection networks.
