Product Overview

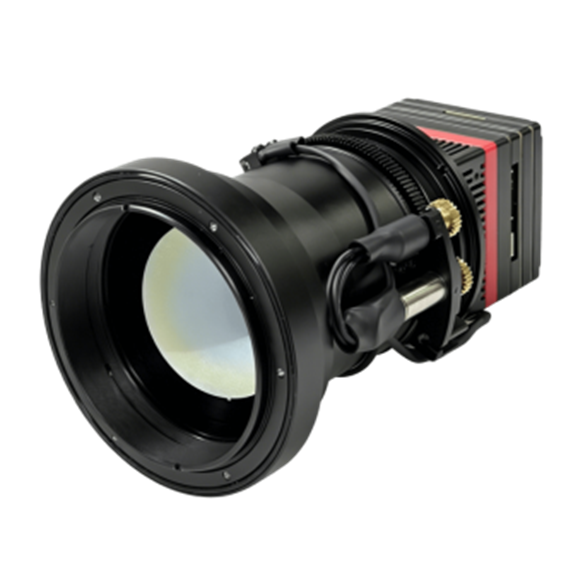

The Zanvision ZV-LESV075HC is a highly integrated, high-definition IP thermal camera module engineered specifically for versatile mid-to-long-range electro-optical systems. Utilizing an advanced 1280*1024 uncooled VOx microbolometer array with a 12µm pixel pitch, it offers exceptional thermal granularity, crucial for situational awareness and accurate threat detection.
Driven by a 75mm motorized auto-focus lens with an ultra-sensitive NETD ≤35mK, the ZV-LESV075HC cuts through severe atmospheric challenges like coastal mist, smoke, dust, and absolute darkness. Providing an optimized horizontal field of view 11.7° ~ 9.4°, it hits the sweet spot between wide-area scanning and precise target tracking.

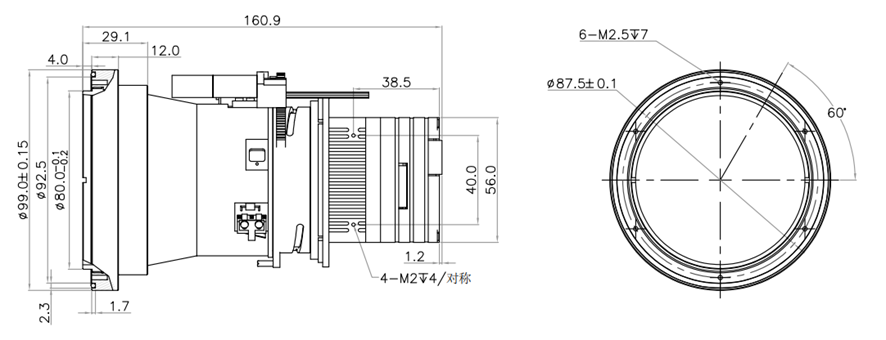

Weighing only 910g with a streamlined Ф80mm barrel profile, this lightweight yet rugged module is perfect for weight-sensitive installations. It provides rich network and serial connectivity (Ethernet, TTL 3.3V, RS485, USB) and natively supports industry standard protocols like ONVIF and VISCA. It is the premier sensor solution for integration into tactical airborne gimbals, vehicle-mounted thermal payloads, coastal surveillance networks, and intelligent forest fire prevention systems.
